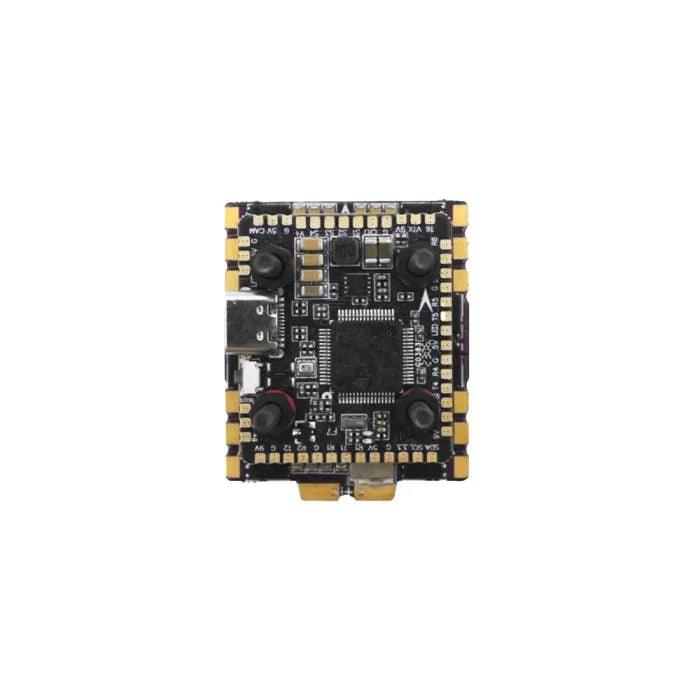

The Flycolor Raptor TR20 Mini Stack features an F722 Flight Controller, equipped with dual VTX and dual LED pads, offering a convenient selection nearby for enhanced customization. With a voltage output range of 3.3V/0.1A, 5V/3A, and 9V/1.5A, this stack ensures stable power distribution. The MPU-6500 SPI gyro and STM32F722 MCU provide precise control, while the 60A ESC, with configurator support via BLHeliSuite32, INAV firmware compatibility, and a 20x20mm mounting pattern, delivers optimal performance for your FPV drone. Compact at 44x36mm and lightweight at 23g, the Raptor TR20 is designed for efficiency, supporting LiPo batteries from 3-6S and making it an ideal choice for your FPV drone and cinematography endeavors.

Check out all our 30x30mm Stacks  and the rest of our Flycolor Products!

Features:

• Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
• The code supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and *Multishot
• MOSFET with high performance and low Rds, not afraid of large current, more suitable for rapid flight
• Miniaturized and lightweight design, better routing, and component layout
• Configurator for ESC Parameter setting and upgrading: BLHeliSuite32
• MCU STM32G0, ARM 32-bit Cortex MCU, frequency up to 64 MHz
• All Dshot and Proshot signals are supported
• 20x20mm, M3 mounting pattern
• PWM frequency up to 128K
• Flycolor_Raptor_5 firmware

Specifications

• F722 FLIGHT CONTROLLER

  • Dual VTX and dual LED pads for convenient selection nearby.
  • Voltage output: 3.3V/0.1A, 5V/3A , 9V/1.5A
  • Gyro: MPU-6500 SPI
  • FC BEC: 3.3V5V9V
  • MCU: STM32F722
  • Const Curr.: 60A

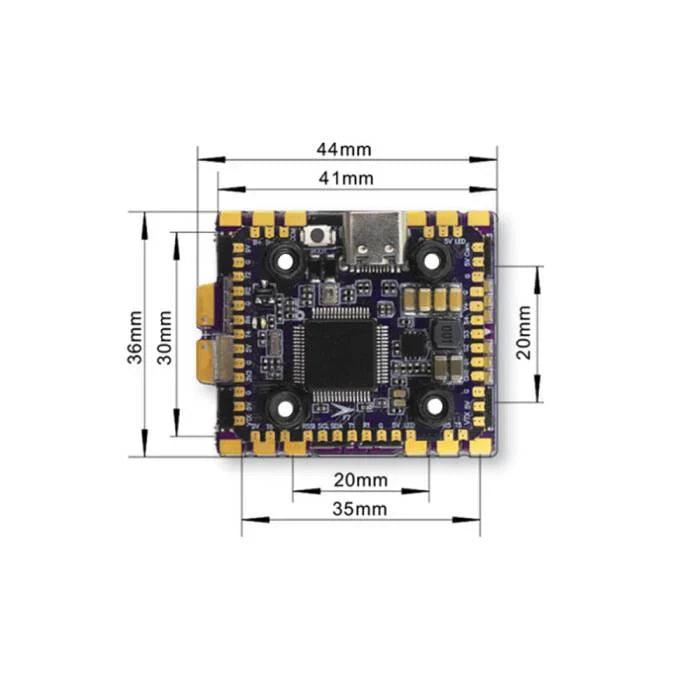

  • Size(mm): 44*36
  • Burst Curr.: 70A
  • USB: Type C
  • Weight: 23G
  • Lipo: 3-6S

  60A ESC

  • Configurator for ESC Parameter setting and upgrading: BLHeliSuite32
  • INAV firmware is supported FLYCOLORF7MINI
  • ARM: 32-bit Cortex, frequency up to 64 MHz
  • ESC firmware: Flycolor_Raptor_5
  • Mounting pattern: 20x20mm, M3
  • PWM frequency: up to 128K
  • MCU: STM32G0

Includes

• 1x Flycolor Raptor TR20 Mini Stack - F722 FC + 60A ESC - 20x20
• 1x 3mm Mounting Accessories Set
• 1x ESC /FC connecting wire
• 1x Electrolytic capacitor
• 1x Power wire(XT60)
