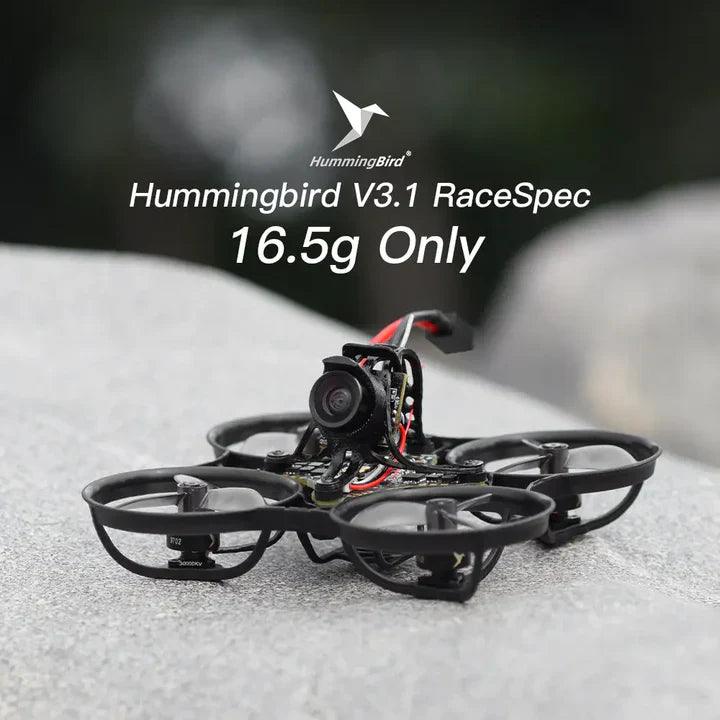

Weighing just 16.5g, the Hummingbird V3.1 RaceSpec BNF Mini Drone is crafted for professional FPV racers seeking peak performance in a lightweight design. Its agility and speed make it the ideal choice for competitive pilots looking to dominate the race track.

Compliance is key for serious racers, and the Hummingbird V3.1 RaceSpec features an accurate 25mW VTX, ensuring that your output power stays within race-legal limits. No need to worry about getting disqualified for exceeding power limits—focus on your race with confidence.

In addition to VTX compliance, this drone offers the flexibility of multiple ESC PWM rates: 24kHz, 48kHz, and 96kHz. The factory default is set to 48kHz, which strikes the perfect balance between torque, smoothness, and efficiency. However, racers can easily adjust to 24kHz for more torque or 96kHz for smoother control. Just make sure to use the O-H-5 firmware to prevent any ESC damage.

Powered by HMB RS 0702 30000KV motors, the Hummingbird V3.1 RaceSpec is designed to handle high-speed, competitive racing. Tuned with Betaflight 4.5 KAACK firmware, it provides the precise control you need to excel in every race.

Check out all our Micro BNF Drones and the rest of our NewBeeDrone Collection.

Features:

• Lightweight Design: Only 16.5g, giving you unmatched agility and speed.
• Accurate 25mW VTX – Stay within race-legal power limits without worry.
• ESC Flexibility – Supports 24kHz, 48kHz, or 96kHz PWM rates. Factory default is 48kHz for balance, but users can switch as needed. Use O-H-5 firmware to avoid damaging the ESC.
• Powerful Motors: HMB RS 0702 30000KV for high-speed racing.
• Battery Connector: A30 connector for reliable power delivery during races compatible with BT2.0.
• Firmware: Betaflight 4.5 KAACK, with RPM Limit for spec racing.

Specifications:

• Frame: NewBeeDrone Cockroach 65mm Brushless LiteAF Racing Frame Black

• Flight Controller: Hummingbird v3.1 RaceSpec ELRS

• Motors: Hummingbird 0702 RaceSpec true 3000kv Motor

• Propellers: Azi (Tri Blade) Micro Propellers 31mm - 1.0mm Shaft

• Camera: BeeEye Camera RaceSpec with short wire

• Camera Mount: Hummingbird RaceSpec Cam mount. TPU 3D Printed Version

• VTX Antenna: 5.8g RaceSpec Antenna

• Power Connector: GNB A30 Compatible with BT2.0

Flight Controller Spec:

• MCU: STM32F411

• GYROBMI270

• VTX: True 25mw 5.8g Analog VTX

• ESC: 12A pre-flashed with Bluejay 0.19.2 O-H-5 48kHz

• ESC Connector: direct solder Pad Recommend Whoop RaceWire

• OSD: NBD7456 graphical OSD compatible with Betaflight OSD Perfect Edition

• Receiver: SPI ExpressLRS 2.4G with solder on Enameled wire 31mm as antenna

• Flight Controller Weight: 4.71g (Include antennas and battery connector)

• Flight Controller Size: Outer dimensions: 29x29x7.6mm

• Flight Controller Holes: 25.5x25.5mm

• Battery input: 1S Only

• Uart1:free

• Uart2:free

• Power Plug:  GNB A30 Connector compatible with BT2.0

SPI ELRS3.0 receiver (Binding instruction: power on the drone, push the bind button under the flight controller to get into bind mode. If your remote control is not ELRS3.0 or above version. You will need to update your remote controller ELRS to 3.0 version because betaflight 4.4 will no longer support any lower version of 3.0)

Includes

• 1 x NewBeeDrone Hummingbird V3.1 RaceSpec 16.5g 1S Analog ELRS 2.4GHz BNF Brushless FPV Whoop
