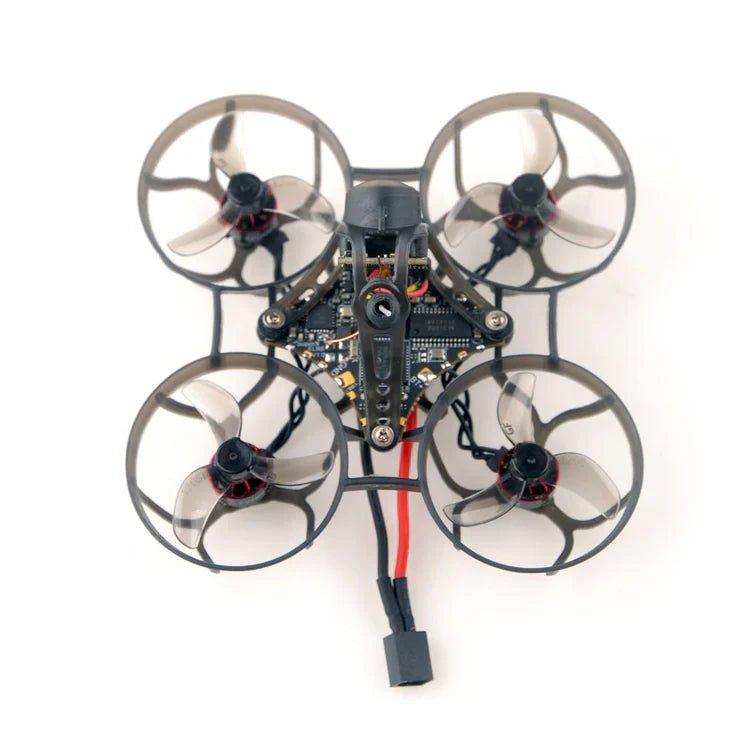

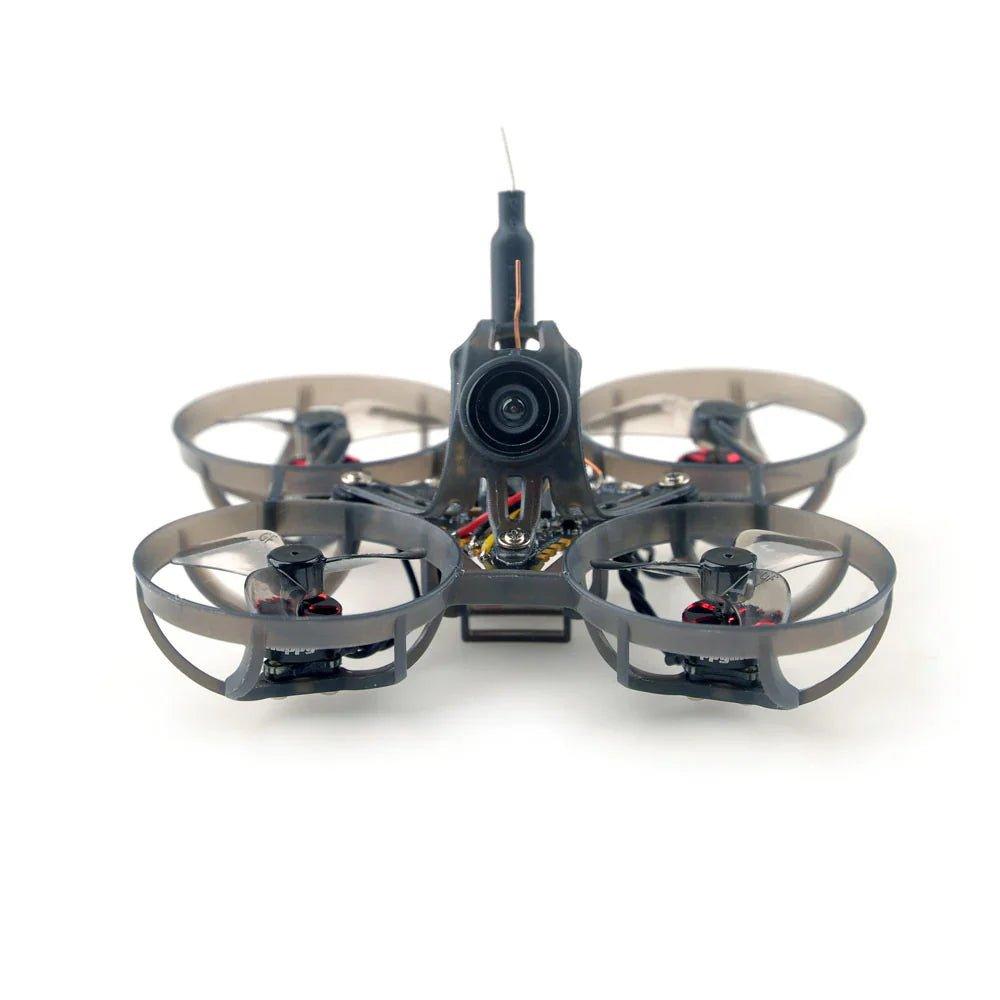

The Happymodel Mobula6 2024 1S 65mm Ultra Light Micro FPV Whoop comes equipped with a lightweight AIO flight controller and Serial ELRS receiver, as well as a 5.8G OpenVTX for optimal performance. With super light brushless motors, specifically SE0702 weighing only 1.46 grams, this product offers smooth and powerful flight capabilities. The FX17-B 1/3 CMOS 800TVL camera captures awesome footage, making it perfect for those looking for a professional and informative FPV experience. Compatible with both 1S lipo and LIHV batteries.

SPECIFICATIONS:

• Brand Name: Happymodel
• Item Name: Mobula6 2024 1S 65mm ultra light micro FPV Whoop
• Wheelbase: 65mm
• Size: 81mm*81mm*37mm
• Weight: 17.7g

Motor

• Mode: SE0702 KV28000
• Configu-ration:9N12P
• Stator Diamter:7mm
• Stator Length:2mm
• Shaft Diameter:Φ1mm
• Motor Dimension(Dia.*Len):Φ9.5mm*14mm
• Weight(g):1.46g
• No.of Cells(Lipo):1S only

Propellers

• Materials: PC
• Inch: 31mm
• Pitch: 0.8 in
• Weight: 0.21g
• Mount hole diameter: 1mm

Flight controller

• SuperX ELRS AIO 5-IN-1 Flight controller
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
• Sensor:BMI270(SPI connection)
• Mount hole size: 25.5mm*25.5mm
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
• Built-in UART ExpressLRS v3.0.0
• Built-in voltage meter sensor, voltage meter scale 110
• Built-in current meter sensor, current meter scale 1175

Onboard 4in1 ESC

• Power supply: 1S LiPo/LiPo HV
• Current: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: Bluejay v0.19.2
• Default protocol: DSHOT300
• Recommend ESC Startup power value to min1100/max1200

Onboard Serial ExpressLRS receiver

• Packet Rate option: 50Hz/150Hz/250Hz/500Hz
• ExpressLRS Firmware version: V3.0
• RF Frequency: 2.4GHz
• Antenna : Enameled copper wire antenna
• Telemetry output Power: <12dBm
• Receiver protocol: Serial_based CRSF
• Compatible with ExpressLRS V3.x.x TX Module
• Could flash single ELRS receiver firmware by Wifi
• ExpressLRS firmware target: Generic ESP32 2.4Ghz RX and VTX

Onboard 5.8g VTX:

• Firmware version: OPENVTX
• MSP VTX
• PIT Mode support
• Channels:40ch
• Transmitting Power: 0/RCE/25mw/100mw/400mw
• Power supply: DC 5V
• Current (5v): <650ma (400mw)
• Antenna connector: U.FL

FX17-B Camera:

• Model:FX17-B
• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• FOV 150°
• Signal System: NTSC
• Net Weight: 1.5g
• Dimensions: L14mm*W14mm*H13mm

PACKAGE INCLUDES:

• 1x Mobula6 2024 1S 65mm whoop Drone Frame +Canopy
• 1x SuperX ELRS AIO 5-IN-1 Flight controller
• 4x SE0702 KV28000 brushless motor
• 1x Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)
• 1x FX17-B 1/3 CMOS 800TVL camera NTSC 4:3
• 1x Onboard 5.8G 25mw~400mw VTX
• 1x Spare canopy
• 1x Propeller disassemble tool
• 1x Screw driver
